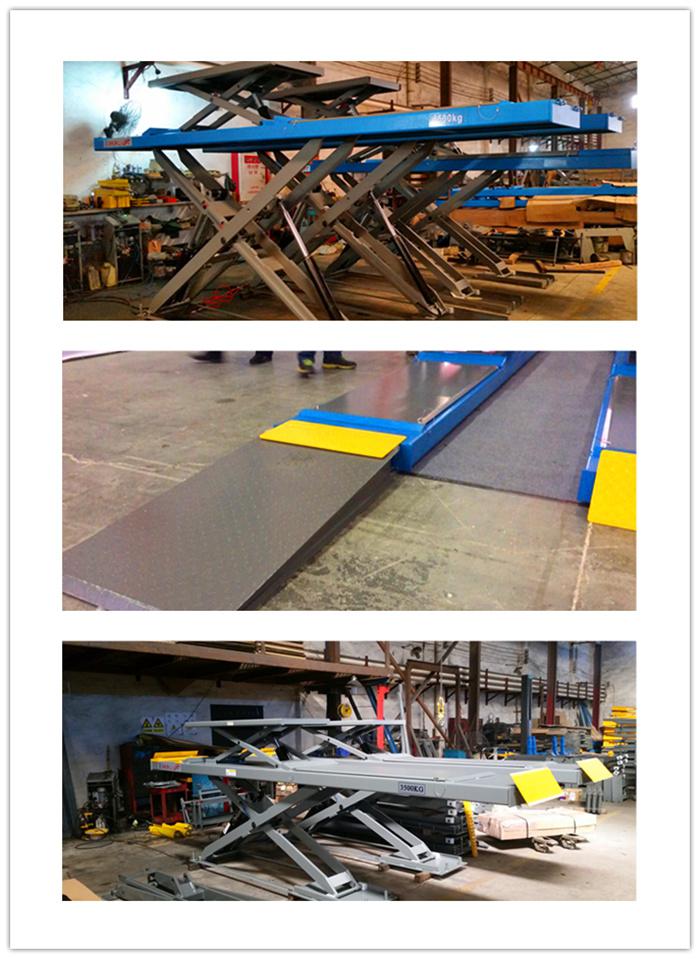

◆Double level scissor lift, 140mm above the ground at the lowest level
◆Adopt Italy technology to design
◆ 24V safety control circuit

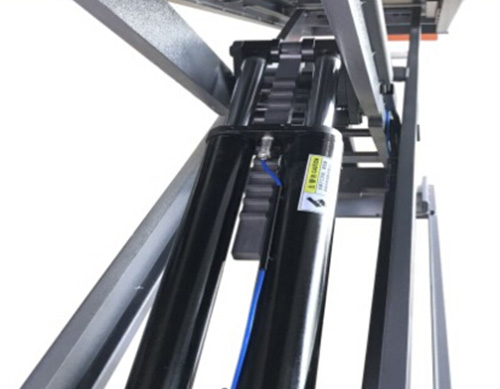

◆ 8 cylinders, double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped
◆ Components are made by laser cutting machine or other CNC equipment
◆ Alloy solid steel X structure, good rust resistance and not easy to deformation
Product Features
·Double level scissor lift, 140mm above the ground at the lowest level
·Adopt Italy technology to design
· 8cylinders, double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped
·24V safety control circuit
·Laser cutting whole-plate platforms, more accurate and stronger
·Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity

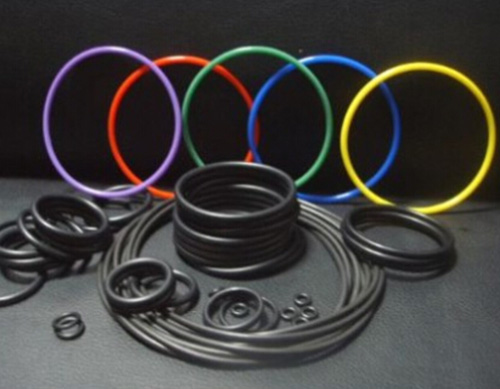

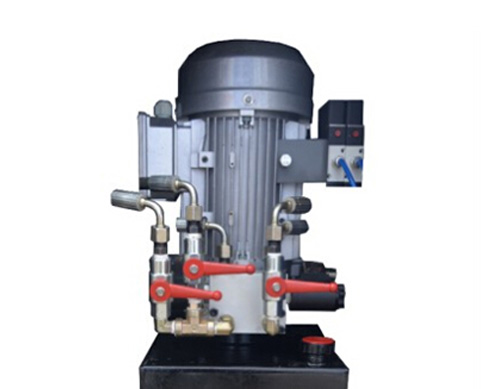

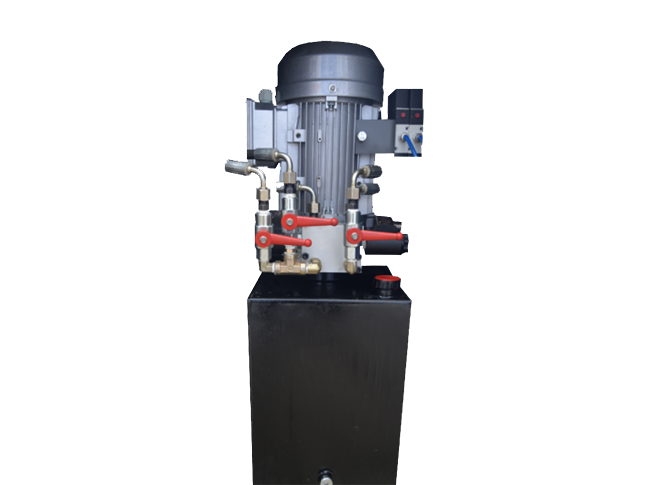

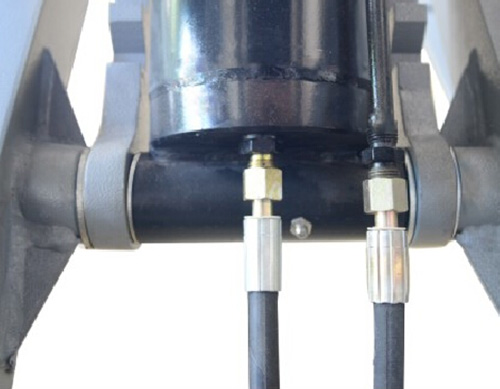

·Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload protection, international brand oil pipe
·Components are made by laser cutting machine or other CNC equipment
·Alloy solid steel X structure, good rust resistance and not easy to deformation
·Shot blasting and high temperature baking powder coated surface finish

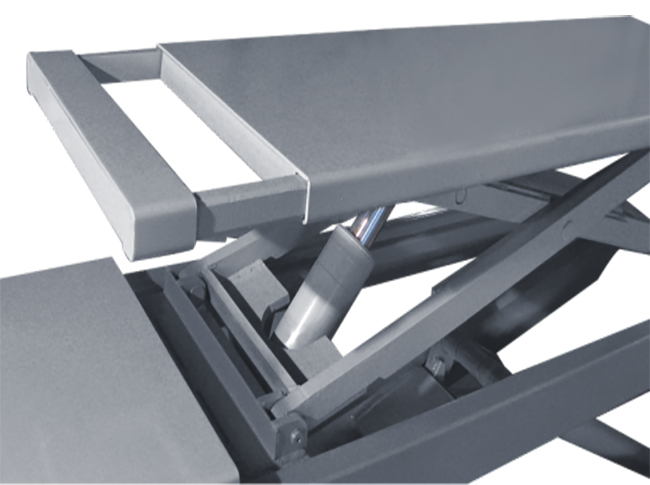

·Second-level extensible platform
·Wear-resisting bearings, polymer wear-resistance slider
·Infra-red electronic leveling sensor, anti presser foot device

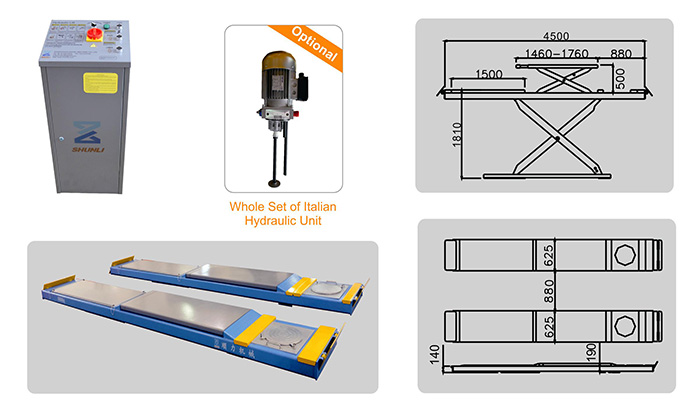

Model | CD5040TCC | FOB Guangzhou price | 5050USD |
Capacity of Main Lift | 5000kg | Sub lift Platform Length | 4500mm |
Capacity of Sub-lift | 4000KG | Main lift Platform Width | 625mm |
Man lift Lifting Time | 40-60s | Sub-lift Platform Length | 1460-1760mm |
Initial Height | 140mm | Sub-lift Platform Width | 600mm |
Main Lift Lifting Height | 1810mm | Motor Power | 380v/220v 3kw |
Sub-lift Lifting Height | 500mm | Air Pressure | 0.4-0.6mpa |
